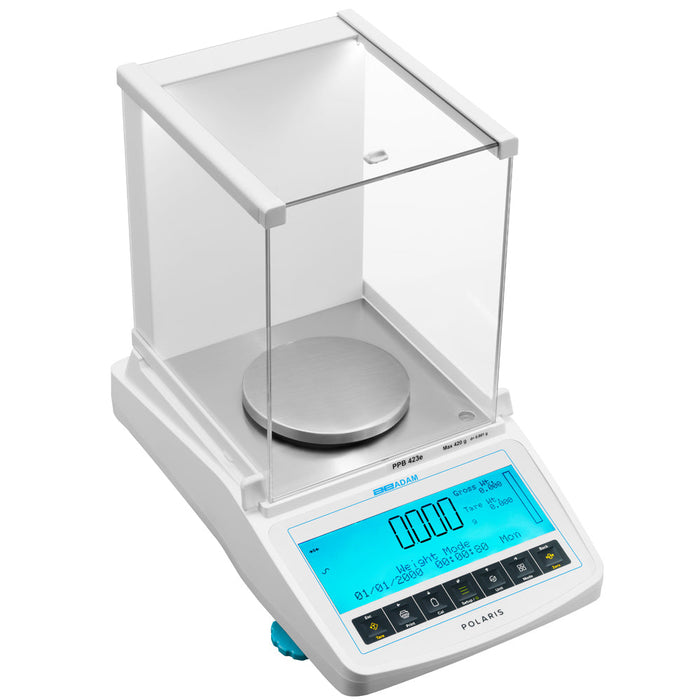

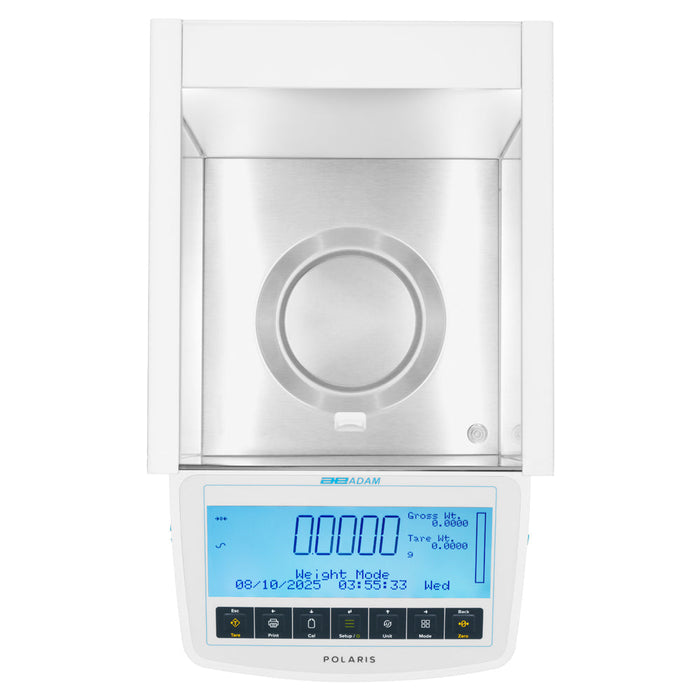

Polaris Top Pan Balances Adam Equipment

Polaris Precision Balances

by Adam Equipment
SKU PPB 223e
R 19,720.00 - R 38,695.00
R 19,720.00
R 19,720.00 - R 38,695.00
R 19,720.00
(excl VAT)

Key Features:
  • Professional high-quality precision balance
  • Outstanding accuracy and memory for research and quality assurance
  • Large LCD and LED-lit weighing chamber for superb weighing clarity

Specifications

Specifications

Model PPB 223e PPB 423e PPB 623e PPB 823e PPB 1223e PPB 1623e PPB 1623i PPB 1223i PPB 223i PPB 423i PPB 623i PPB 823i
Capacity 220g 420g 620g 820g 1220g 1620g 1620g 1220g 220g 420g 620g 820g
Readability 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g
Repeatability (S.D)
Linearity
Pan Size 120mm ø 120mm ø 120mm ø 120mm ø 120mm ø 120mm ø 120mm ø 120mm ø 120mm ø 120mm ø 120mm ø 120mm ø
Weighing Units g, mg, ct, dwt, oz, tl.S, tl.T, mm, N, custom unit g, mg, ct, dwt, oz, tl.S, tl.T, mm, ozt, N, custom unit g, mg, ct, dwt, oz, tl.S, tl.T, GN, mm, N, custom unit g, mg, ct, dwt, oz, tl.S, tl.T, mm, N, custom unit g, mg, ct, oz, dwt, tl.S, tl.T, mm, N, custom unit g, mg, ct, dwt, oz, tl.S, tl.T, mm, N, custom unit g, mg, ct, dwt, oz, dr, tl.S, tl.T, mm, N, custom unit g, mg, ct, dwt, oz, tl.S, tl.T, mm, N, custom unit g, mg, ct, oz, dwt, tl.S, tl.T, mm, custom unit, N g, mg, ct, dwt, oz, tl.S, tl.T, mm, N, custom unit g, lb, oz, ct, GN, dwt, mm, ozt, T, tl.H, tl.S, tl.T, custom unit g, mg, ct, oz, tl.T, tl.S, dwt, mm, N, custom unit
Stablisation time 3 seconds 3 seconds 3 seconds 3 seconds 3 seconds 3 seconds 3 seconds 3 seconds 3 seconds 3 seconds 3 seconds 3 seconds
Interface Ethernet RJ45, BlueTooth, RS-232, USB Ethernet RJ45, BlueTooth, RS-232, USB Ethernet RJ45, BlueTooth, RS-232, USB Ethernet RJ45, BlueTooth, RS-232, USB Ethernet RJ45, BlueTooth, RS-232, USB Ethernet RJ45, BlueTooth, RS-232, USB Ethernet RJ45, BlueTooth, RS-232, USB Ethernet RJ45, BlueTooth, RS-232, USB Ethernet RJ45, BlueTooth, RS-232, USB Ethernet RJ45, BlueTooth, RS-232, USB Ethernet RJ45, BlueTooth, RS-232, USB Ethernet RJ45, BlueTooth, RS-232, USB
Calibration External calibration External calibration External calibration External calibration External calibration External calibration Internal calibration Internal calibration Internal automatic calibration Internal automatic calibration Internal automatic calibration Internal automatic calibration
Applications
Display 7.4” Multi-Colour Backlit LCD 7.4” Multi-Colour Backlit LCD 7.4” Multi-Colour Backlit LCD 7.4” Multi-Colour Backlit LCD 7.4” Multi-Colour Backlit LCD 7.4” Multi-Colour Backlit LCD 7.4” Multi-Colour Backlit LCD 7.4” Multi-Colour Backlit LCD 7.4” Multi-Colour Backlit LCD 7.4” Multi-Colour Backlit LCD Graphic display with 15mm high digits 7.4” Multi-Colour Backlit LCD
Power Supply 18VDC 830mA adapter 18VDC 830mA adapter 18VDC 830mA adapter 18VDC 830mA adapter 18VDC 830mA adapter 18VDC 830mA adapter 18VDC 830mA adapter 18VDC 830mA adapter 18VDC 830mA adapter 18VDC 830mA adapter 18VDC 830mA adapter 18VDC 830mA adapter
Construction ABS plastic with glass draft shield ABS plastic with glass draft shield ABS plastic with glass draft shield ABS plastic with glass draft shield ABS plastic with glass draft shield ABS plastic with glass draft shield ABS plastic with glass draft shield ABS plastic with glass draft shield ABS plastic with glass draft shield ABS plastic with glass draft shield ABS plastic with glass draft shield
Overall Dims. 235x398x336mm 235x398x336mm 235x398x336mm 235x398x336mm 235x398x336mm 235x398x336mm 235x398x336mm 235x398x336mm 235x398x336mm 235x398x336mm 235x398x336mm 235x398x336mm
